- Functional Description
- Specifications
- Applications

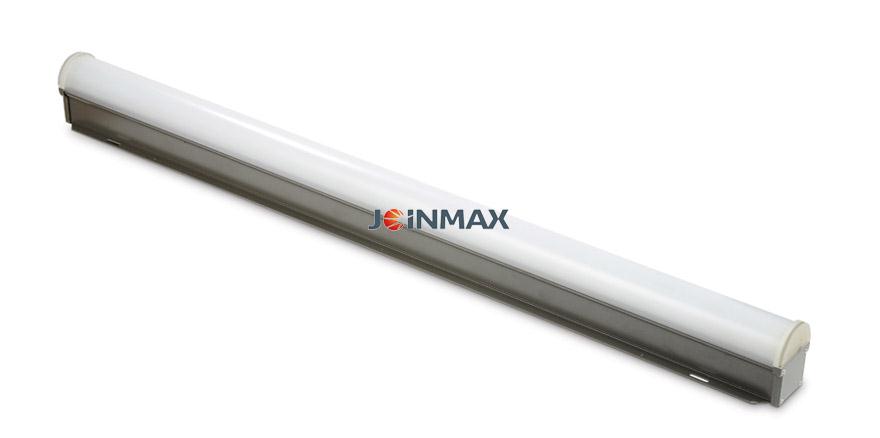

1. Employ small-power, three in one LED as light source with high light efficacy, long working-life matching PC mask with high transmittance rate, the sparking angle is over 140 degree. Three color mix evenly and ?ideal effect could still be achieved when looked nearby.
2. Employ electricity supply from direct current power DC 24V, which could connect more lamps and save cable costs.
3. Aluminum alloy +PC enhance the heat-radiation effect greatly and compact small-size structure used for the installation and maintenance.
4. The protection ?grade has reached IP 65, suitable for indoor and outdoor use.
5. The density of pixel is as high as 8 pixels each meter, suitable for the outline lighting of outer walls and unit for large display screen.
技術分類 Technical?Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical?Properties | 供電電壓Input?voltage | AC100-240V，50-60Hz |
最大功耗Max.power?consumption | 25W | |
功率因數?Power?factor | >?0.90? | |
光學性能 Optical?Properties | 光源組成LED?composition | 72顆3合1?SMD?LED??72?pcs?of?SMD?LED?Lamps |
像素間距Pixel?pitch | 125mm | |
顯示像素Pixels | 8?像素/米?8?pixels/meter | |
光色LED?color | 紅色/綠色/藍/全彩色?red/green/blue/full?color | |
光束角Beam?angle | 140° | |
亮度等級Brightness?grade | 每種顏色256?級256?grade?per?color | |
光通維持率 Luminous?maintenance?rate? | 50000?hour（@70%） | |
控制方式 Control?Mode | 控制接口Interface | DMX512 |
控制系統Control?System | 中鳴科技Easyplay5.0 | |
結構性能 Structure | 尺寸(長x寬x高) ?Dimension?(L*W*H) | 1005X78X86（mm） |
重量Weight | 1.5Kg | |
燈體材料Material | 擠壓鋁+磨砂PC??Die-casting?aluminium?and?transparent?PC | |
表面顏色Surface?color | 金黃色?Gold | |
燈具連接Connection | 4芯信號接插件，3芯電源接插件????4-pin?signal?connector,?2-pin?power?connector | |
防護等級IP?grade | IP65 | |
工作溫度Work?temperature | -20℃～50℃ | |
工作濕度Work?humidity | 0～90% | |
最大級聯數 Max.?cascade?connection?qty | 電源級聯20個，信號級聯?32個????20pcs?(power)；32pcs?(signal) | |
使用環境Work?Environment | 干燥/潮濕dry/humid | |
安全性能 Safety | 認證Certificate | CE，CCC |
長度規格 Length | 功率Power | 發光顏色 LED?Color | 產品編號 Model | |
1005mm | 25W | 紅色/綠色/藍色組合 red/green/blue | JM07-207201RGB | |
505mm | 13W | 紅色/綠色/藍色組合 red/green/blue | JM07-203601RGB |
-
