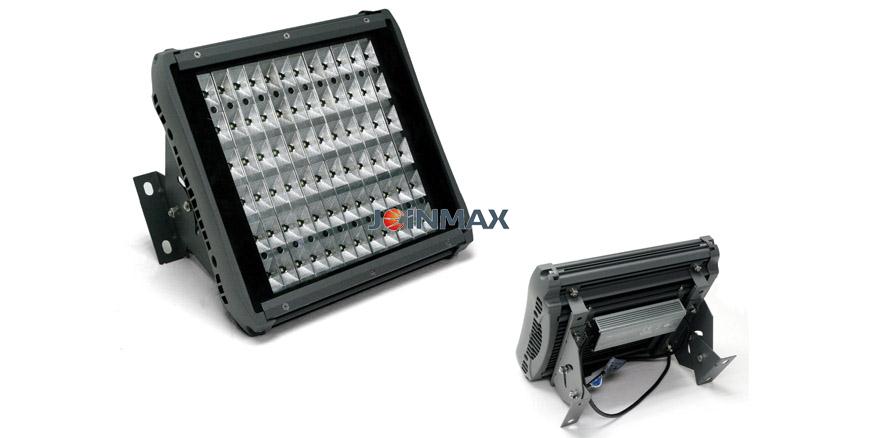

1.?????? Streamlined feature combined with LED structure characteristics, compact and simple
2.?????? Integrated design of light source and electronic appliance with nice outlook
3.?????? Three-phase separated body structure and function well independently
4.?????? 23K temperature increase design notion and follow the tunnel wind-direction heat-dissipation fins design with the outstanding heat-dissipation performance.
5.?????? Employ unique twice light mixing optimization reflector, which fit the tunnel lighting requirement more
6.?????? The light diffuser employs superior steel glass with good light transmittance rate and no light change
7.?????? Long-working life power drive to ensure over 50,000 hours working life with multiple protection function like short circuit protection , open circuit protection ,overheated protection to synchronize with LED light.
?參數分類 | 項目規格 | JZ21-303002-017 | JZ21-303001-017 | JZ21-306001-017 | JZ21-302402-017 | JZ21-302401-017 | JZ21-304801-017 | JZ21-303601-017 | JZ21-303601-017 | JZ21-301801-017 |
電氣參數 | 供電電壓 | AC85-265V,47-63Hz | AC85-265V,47-63Hz | AC85-265V,47-63Hz | AC85-265V,47-63Hz | AC85-265V,47-63Hz | AC85-265V,47-63Hz | AC85-265V,47-63Hz | AC85-265V,47-63Hz | AC85-265V,47-63Hz |
最大功耗 | 60W | |||||||||
光源色溫 | 6700K | |||||||||
光通量 | 6000lm | |||||||||
光效 | 100lm/w | |||||||||
亮度等級 | 2級 2levels | 2級 2levels | 2級 2levels | 2級 2levels | 2級 2levels | 2級 2levels | 2級 2levels | 2級 2levels | 2級 2levels | |
控制方式 | 控制方式: | 上電常亮 | ||||||||

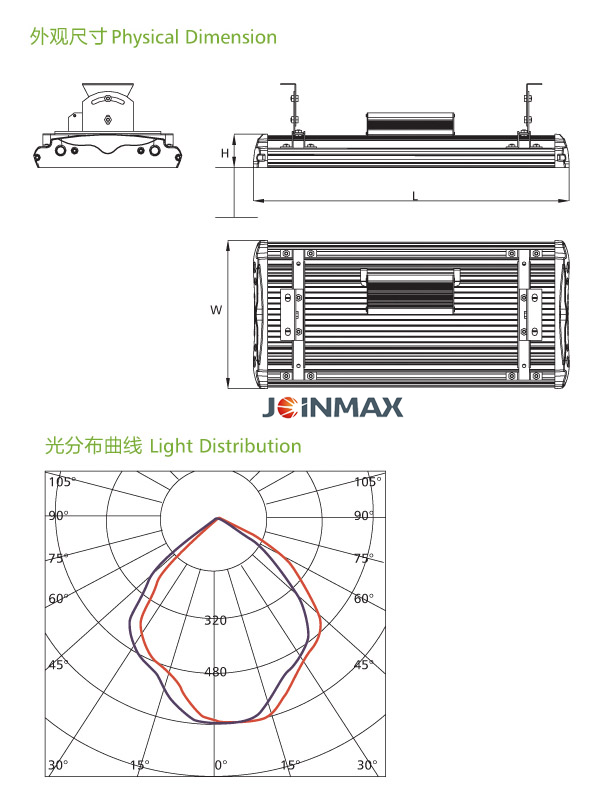

結構參數 | 尺寸(長x寬x高) | 根據功率決定長度 | ||||||||
重量 | ??????????????????????????????????????????????根據功率決定重量 | |||||||||
燈體材料 | 鋁合金燈殼含鰭片,抗UV鋼化玻璃燈罩 | |||||||||
表面顏色 | ????????????????????????????????????????????????可選擇 | |||||||||
常規參數 | 工作溫度 | -30℃-50℃ | ||||||||
工作濕度 | 10%-90%RH | |||||||||
安全性能 | 使用環境 | -20℃-40℃ | ||||||||
防護等級 | IP65 |
